Optical Electrical Connectors
RONA
7307220000
100PCS

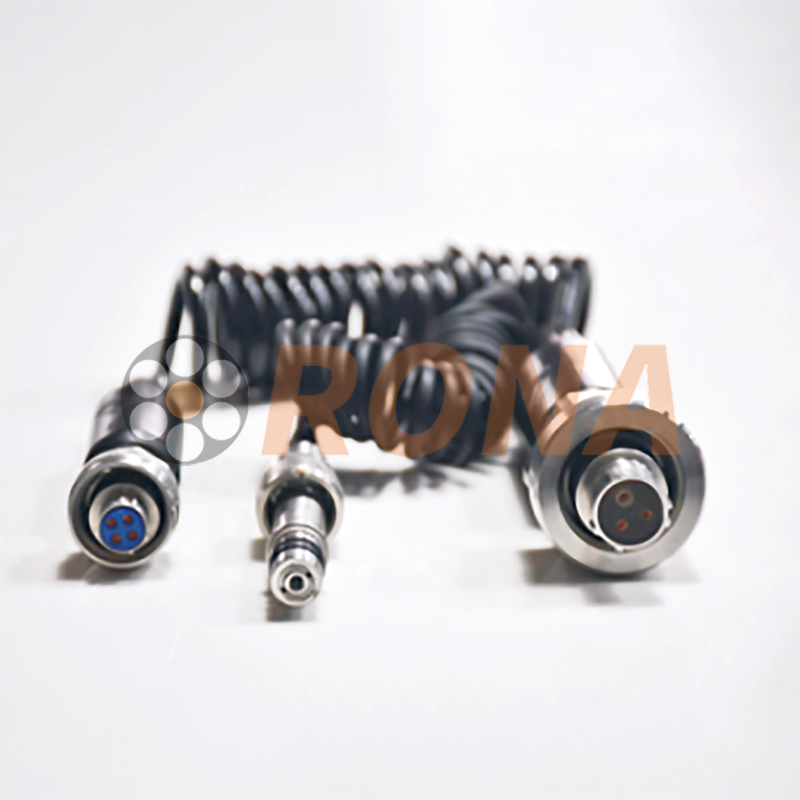

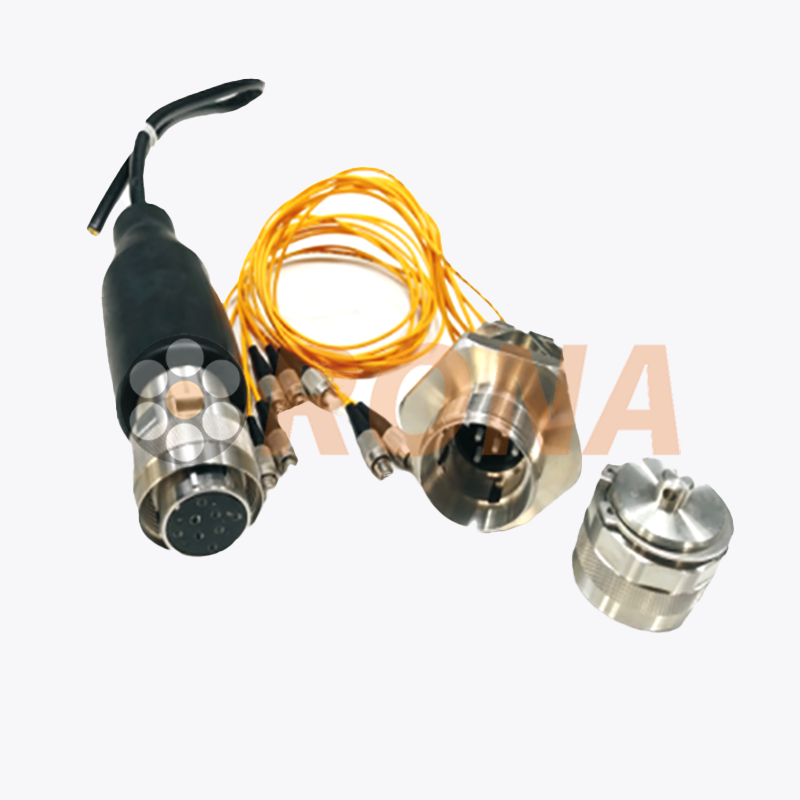

Rona Deep-Sea Optical-Electrical Hybrid Connectors
For power and signal transmission in deep-sea equipment.

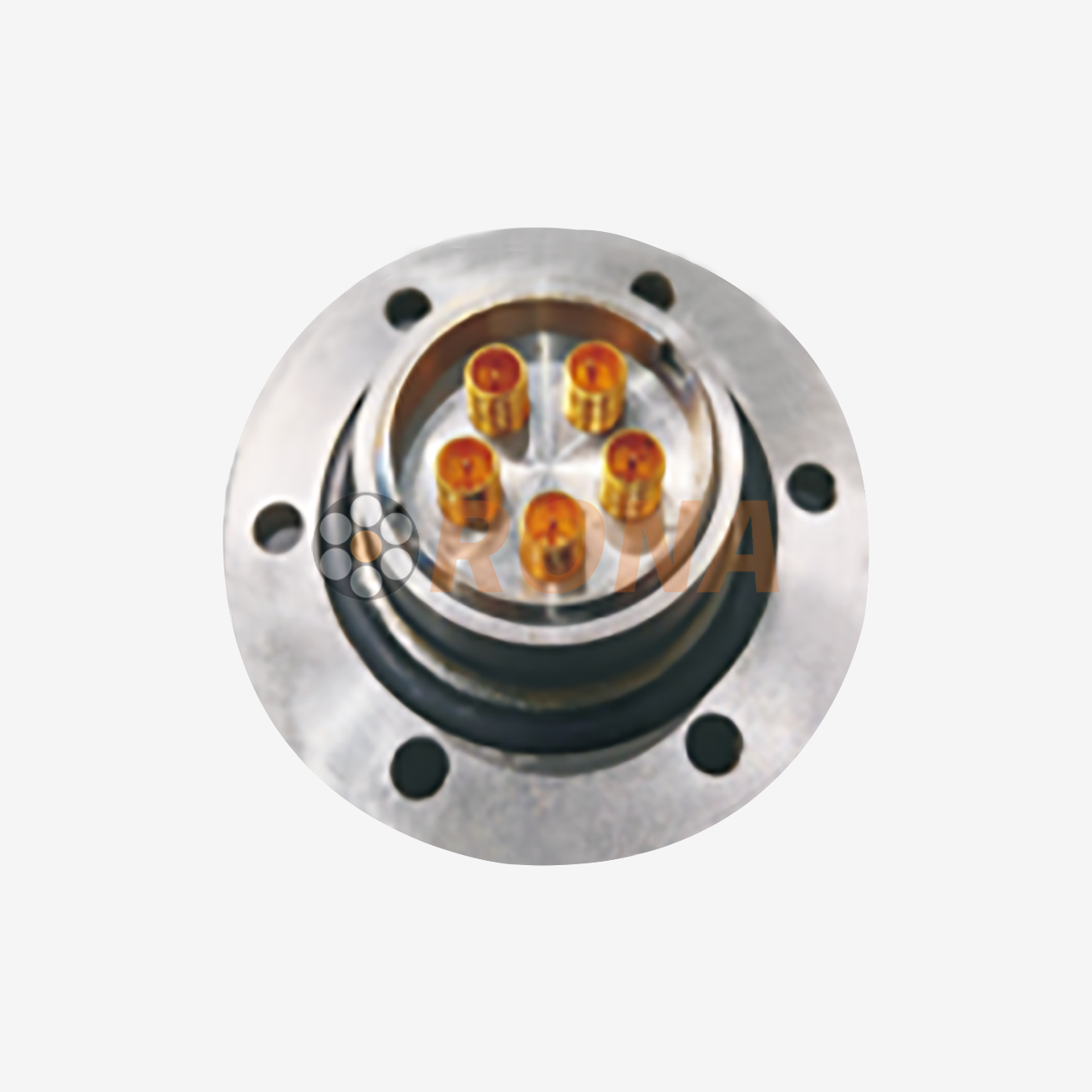

Connector types: Circular flange, square flange, bulkhead
Materials: 316L stainless steel / TC4 titanium alloy (optional)
Configurations: Power-only, low/high-frequency comms, optical, hybrid (optical+electrical), or Type-C high-speed data.
Key Features
Modular & standardized designs
Full ocean depth rated
High longitudinal pressure resistance
Hybrid optical-electrical transmission
Reliable deep-sea sealing
Technical specification
| Electrical Characteristics | |
Parameter | Value |
Contact Cores |
|
Series Number | 6 series |
Contact Resistance |
|
Insulation Resistance | ≥5000 MΩ |
Dielectric Strength | 2000-100kV DC (1min) |
Current Capacity |
|
Characteristic Impedance |
|
| Signal Transmission | |
Parameter | Value |
Insertion Loss | 0.8dB (std)/0.3dB (low) @1310nm |
0.6dB (std)/0.2dB (low) @1550nm | |
Frequency Range |
|
RF VSWR | ≤1.2 |
| Mechanical & Environmental | |
Parameter | Value |
Mechanical Life | 5000 cycles |
Vibration Resistance | 10-2000Hz, 0.75mm/100m/s² |
Impact Resistance |
|
Water Pressure | 45-127MPa (transverse/longitudinal) |
Operating Temperature | -40℃ to +95℃ |
Assembly method
 |  |
| Single-head assembly type | Double-head assembly type |
 |  |
| Curved plug assembly type | Floating socket assembly type |
Applications
Marine and offshore, renewable energy and subsea systems
Naval systems and equipment
Oceanographic systems, equipment and instrumentation solutions
ROV and ROTV systems
Underwater camera, video and lighting systems
Ocean bottom seismic systems
Diving systems and equipment
